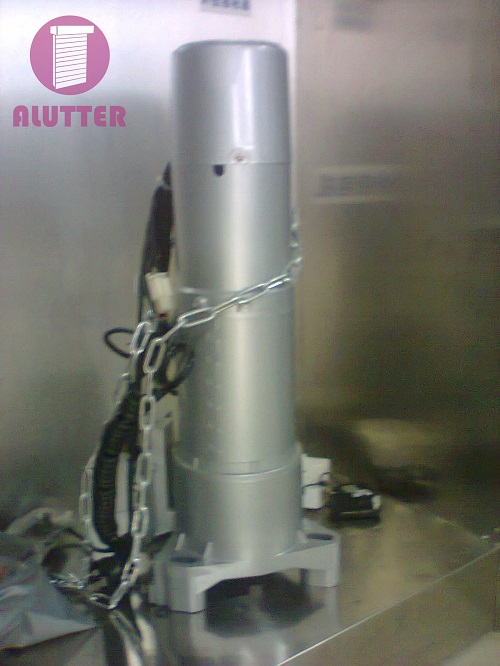

Outside chain motor to set up limits

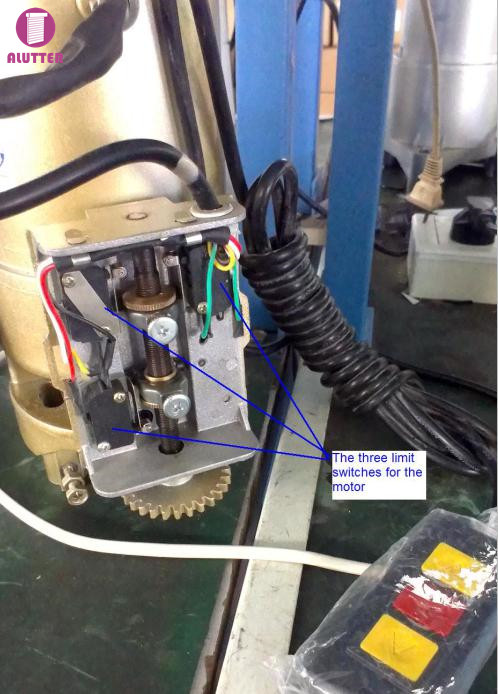

Step 1: open the small box on the motor and you see the original status

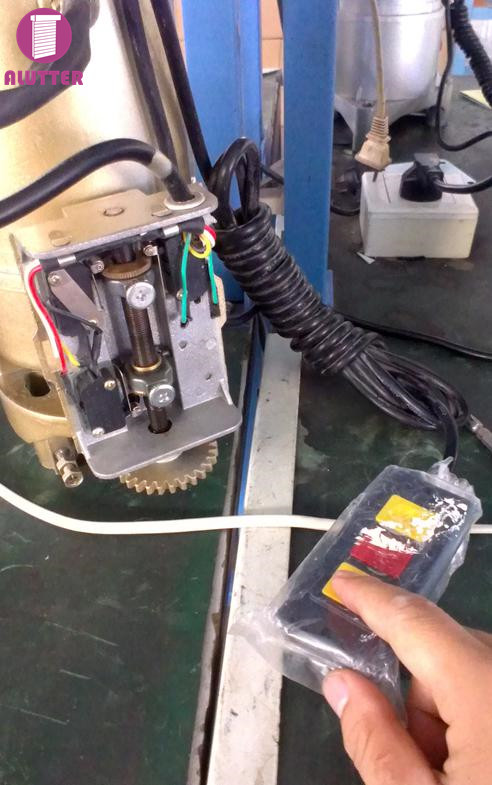

Step 2: press the UP on the switch, until the shutter reaches the ideal height, press STOP, then adjust the Copper, until it reaches to the end, you can hear a low Ding sound.

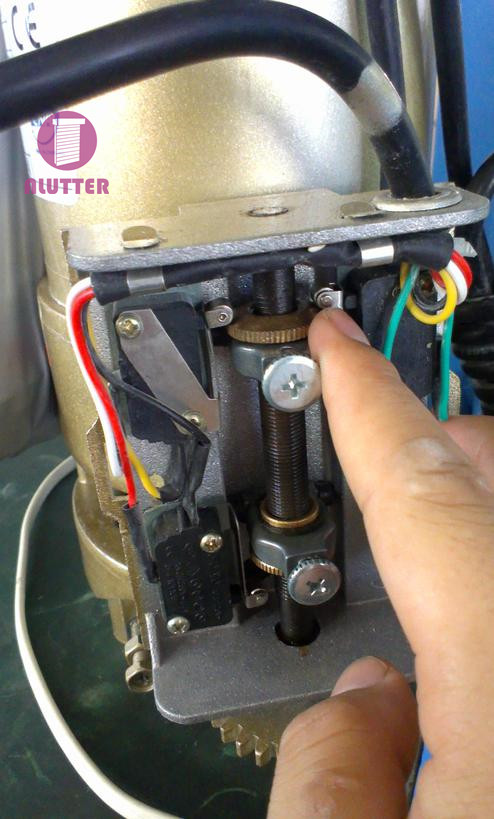

The Copper reaches its end

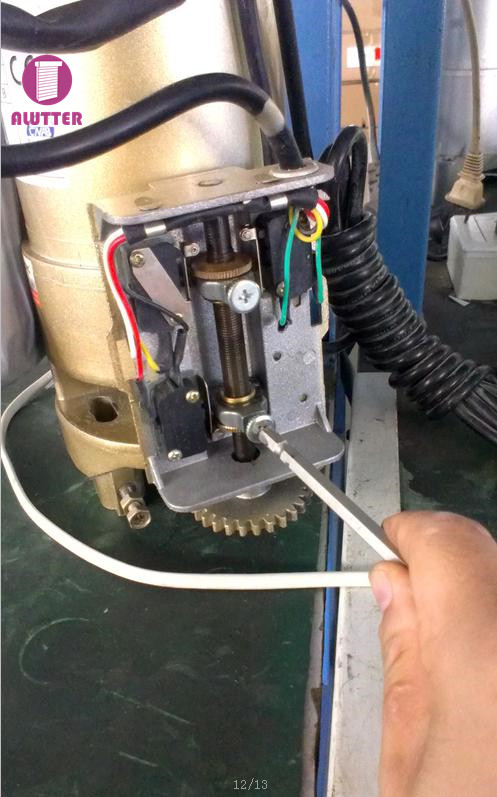

Step 3: highly fasten the silver color screw. If this screw is too loose, the shutter may not stop where you want to stop in future.

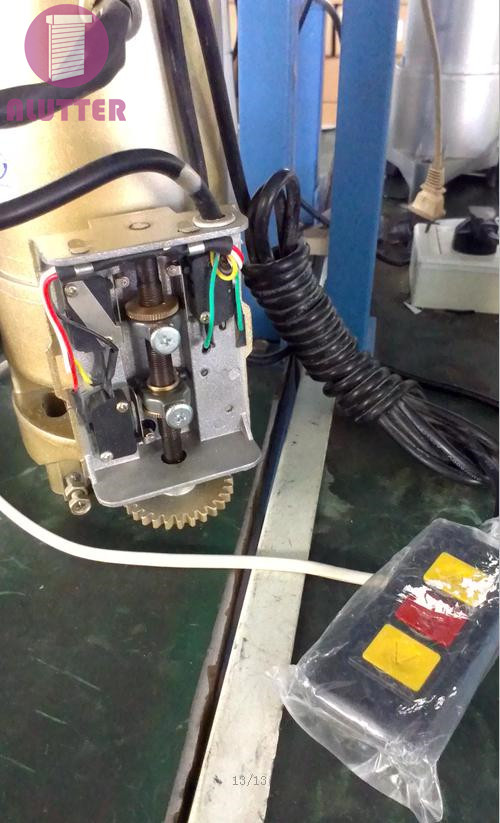

Step 4: press DOWN, until the shutter closes and press STOP.

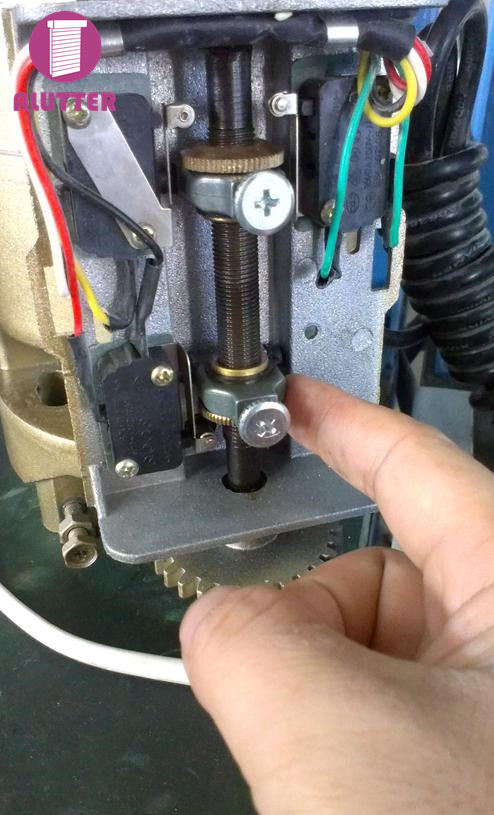

Step 5: adjust this Copper, until it reaches to the end, and you can hear a small Ding sound, too.

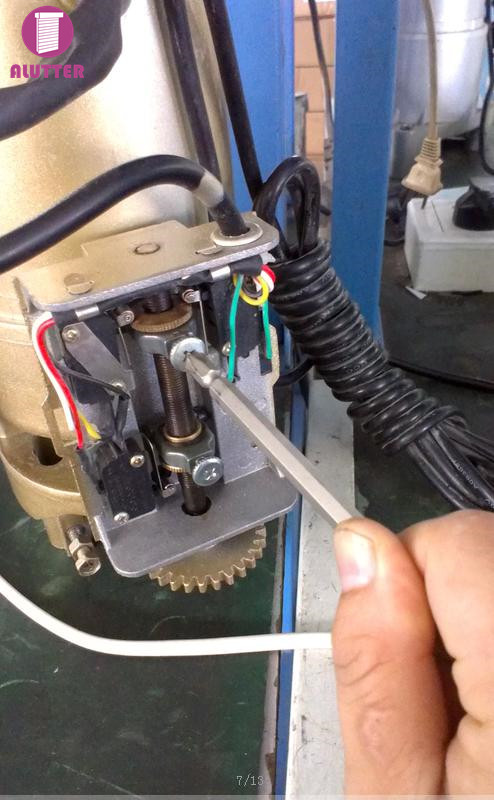

Step 6: highly fasten this screw, too.


Till now, the limit set up has finished.
